Hygienic / Lobe Pumps

Made with high quality Stainless Steel materials and specially designed to assist you with your manufacturing needs. Used in many top end factories. Various helical rotary lobes available depending on the substance being pumped. Along with pump accessories e.g. Thermal Jacket, Designed for products the require temperature control such as, sugars, chocolate, syrup.

DESCRIPTION

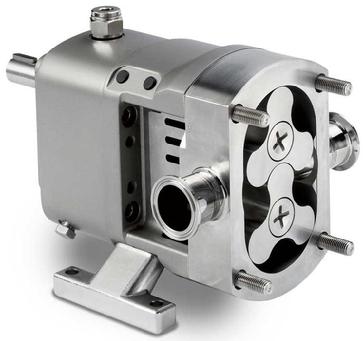

Hygienic Lobe Pumps

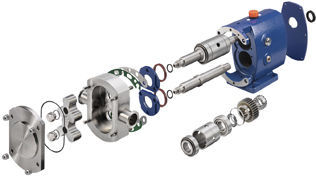

The lobe pumps are designed to achieve maximum pump performance combined with minimal product damage. Specific attention is paid to the bearing construction and the rigidity of the shaft. The design is kept as compact as possible and the volume between the lobes is optimized. This makes the range suitable for high working pressures up to 15 bar. The application range comprises a capacity of up to 110 m3/h. The entire pump section as well as the gearbox is made of stainless steel. The pump is easily cleaned resulting in less maintenance time. The possibility of mounting the pump with the connections placed vertically (“self-draining position”) makes it universally applicable.

Applications

Vicous dairy products with vulnerble ingredients:
yoghurt, custard, butter, curdled milk
Beverages:
beer, fruit juice, lemonade
Cosmetic products:
cream, shampoo, etc
Meat products:
chopped meats, extracts, animal foods
Viscous products:
sauces, salads, soups, glucose syrup, chocolate
Chemicals – all varieties

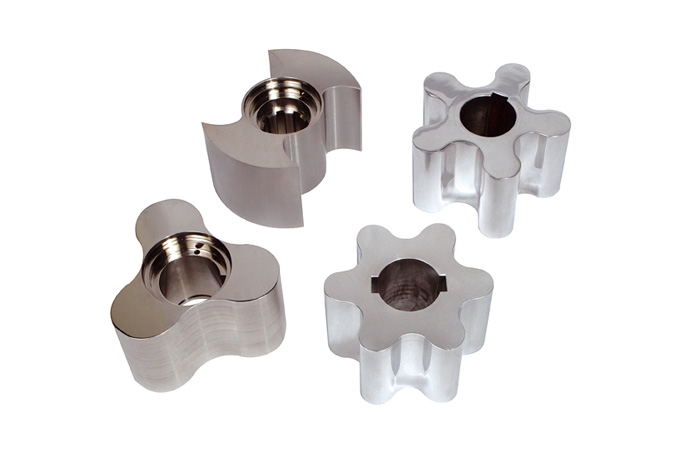

Various rotary Lobes avaliable depending on what is being ‘pumped’ through. For example, a smooth jam would be ok with 5 lobe rotor or 2 lobe rotor. If you wanted to produce jam with whole pieces of fruit you would need a 2 lobe rotor.

TECHNICAL

Jabsco Lobe Pump

Hy~line, Ultima and '24 Series' Rotary Lobe Pumps

Applications:
– Food Ingredients
– Confectionery and Bakery
– Milk and Dairy Products
– Cosmetics
– Chemicals
– Meat Products
– Brewing and Soft Drinks
– Pharmaceuticals
– Abrasive suspensions
– Transfer
– Process
– Filling
– Metering
– Filtration
– Circulation
– Tankers
Packo Pumps

AISI316 Stainless Steel Centrifugal Pumps

FP Series Stainless steel centrifugal pumps
Flow from 1m3/hr to 180m3/hr, Heads upto 70m
All wetted parts are Electropolished AISI316 Stainless steel
Suitable for food, pharmaceutical and cosmetics applications.

SCP Series Stainless steel self-priming centrifugal pumps
Flow from 1m3/hr to 55m3/hr, Heads upto 40m
Suitable for food applications, tanker unloading and as a CIP cleaning return pump.

VDV and VDK Series Stainless steel centrifugal pumps
Flow from 1m3/hr to 250m3/hr, Heads upto 20m
For liquids with vulnerable, fibrous or abrasive solids in suspension in food and textile applications and for handling waste water. Idealy suited for pumping liquids containing vegetables, fruit or shellfish.
