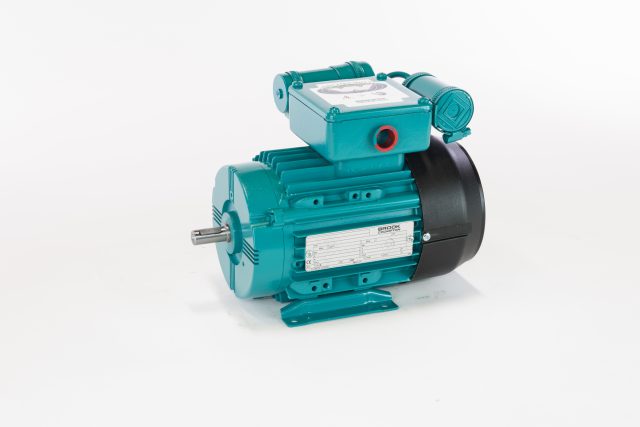

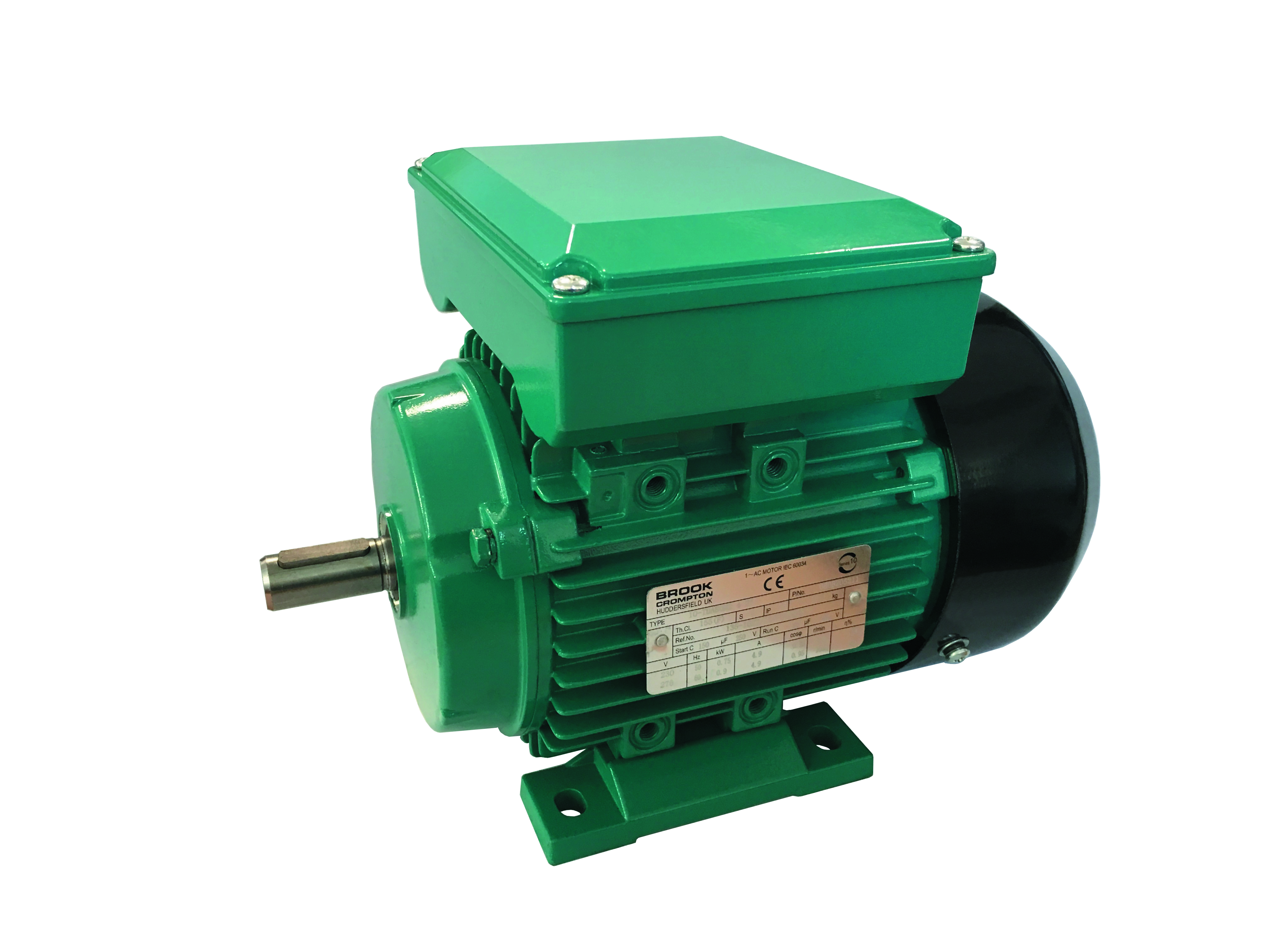

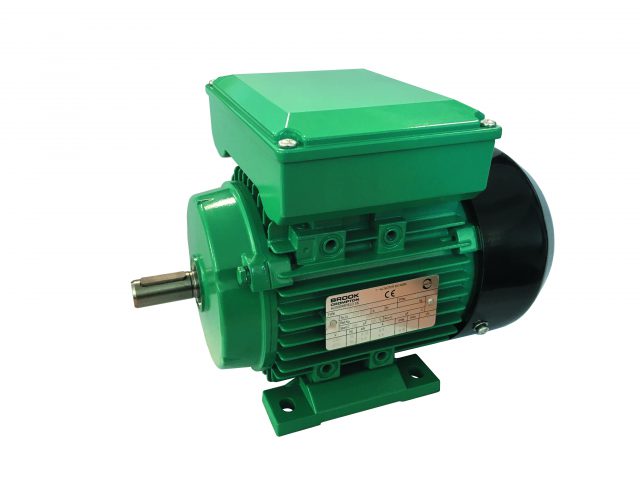

Single Phase Electric Motors
Brook Crompton Series 10, single phase electric motors held in stock at Boardley & Roberts. A Range of different power, speeds and mountings to suit your requirements. For more details, specification and drawings please visit the product page.
Available Downloads:
DESCRIPTION
Single phase motors are used primarily in small workshops and farms with a domestic supply. Some industrial equipment are specifically designed for use with a single phase electricity supply, such as fans, blowers, centrifugal pumps and high pressure washers
Series 10 aluminium (IEC) – Single Phase
3000 RPM (2 Pole) Specification
- Aluminium 71 to 100L Frames
- Foot (B3) or Flange (B5) mounting
- Foot & Flange (B35) & Foot & C Face (B34)
- (B14) C Face mounting
- Cooling: IC411 (TEFV)
- Enclosure: IP55
- Standard Voltage 230V
- 1 Phase, 50 Hz Supply
1500 RPM (4 Pole) Specification
- Aluminium 71 to 100L Frames
- Foot (B3) or Flange (B5) mounting
- Foot & Flange (B35) & Foot & C Face (B34)
- (B14) C Face mounting
- Cooling: IC411 (TEFV)
- Enclosure: IP55
- Standard Voltage 230V
- 1 Phase, 50 Hz Supply
Single Phase (Series 10) Spares Avaliable:
Frames 71, 80, 90, 100
- D Flange
- C Face
- Endshield
- Feet (Pair)
- Start Relay
TECHNICAL
| Manufacturer | Brook Crompton |
|---|---|
| Frame Size | 71 – 100L |
| Mounting | B3 – Foot |
